MVC - RenderAction for Partial Views

Using 2 Views in the Same Controller for Insert & Update of Data

This article demonstrates how to Insert and Update data in an MVC Application using 1 Controller, 2 Partial Views, a strongly typed View Model, a Business Layer, and a Data Layer with a SQL repository to process the data on the Server. This application uses the AdventureWorks database - specifically, the Person.Contact table. The Home Controller and View returns the list of Contact data with a link to Edit existing data and a button at the top of the list to Insert data using a bit of jQuery to in the _Layout.cshtml.

Create SQL Stored Procedures

I need a stored procedure to retrieve the data, one to Update the data, and one to Insert the data. To get the data, I create a simple stored proc called Sales.usp_SalesCustomersAll which is nothing more than a select statement SELECT * from Person.Contact. I need a Stored Procedure to Insert the data (usp_InsContacts) and one to Update the data (usp_UpdContacts).

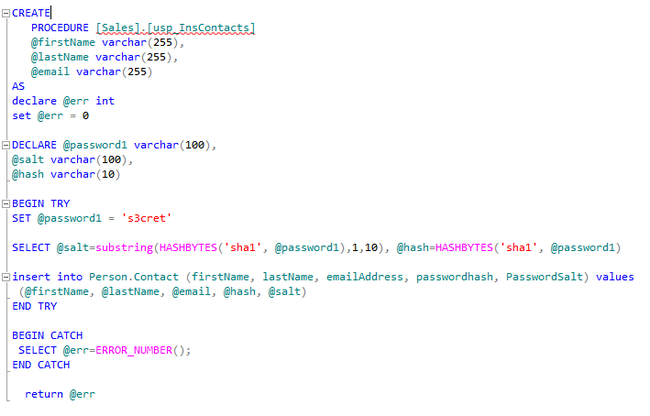

SQL Code for Insert Stored Proc

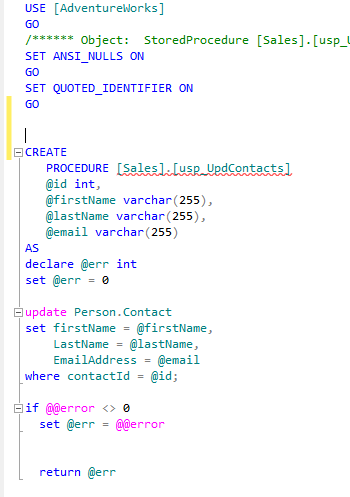

SQL Code for Update Stored Proc

Create a ViewModel

The View Model needs fields that will be called from the Stored Proc.

public class JobViewModel
{
public int id { get; set; }
public string firstName { get; set; }
public string lastName { get; set; }
public string email { get; set; }
}


Create a Data Layer Repository

I will called the Stored Proc from the Data Layer in a method called getAllJobs() which will return a collection of the View Model called JobViewModel.

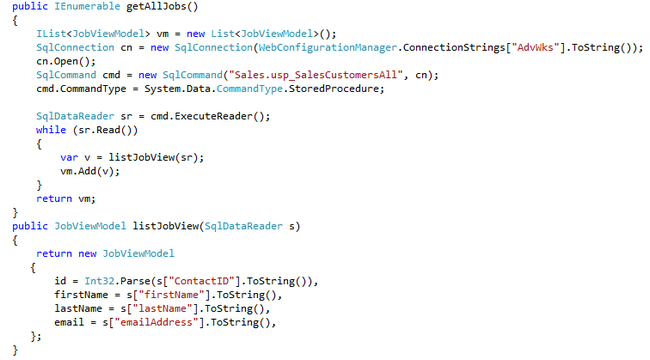

Data Layer code to retrieve data from SQL Server

.

Create an MVC Controller and View to Display Data

I add code to my Home Controller uner the ActionResult Index section to call my method to push all of the Person.Contact records into my model which will be of acollection of the strongly typed ViewModel, JobViewModel.

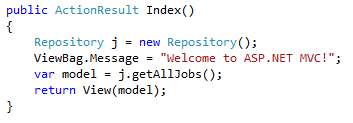

Alter code for Home Controller ActionResult Index

Notice the call at the top for the model to be of type IEnumerable to get the collection of the Type JobViewModel. I have made the id field a link to Edit the record in the foreach loop that builds a table from the collection. There is also a button at that top that I will use to create new records to add to Person.Contact.

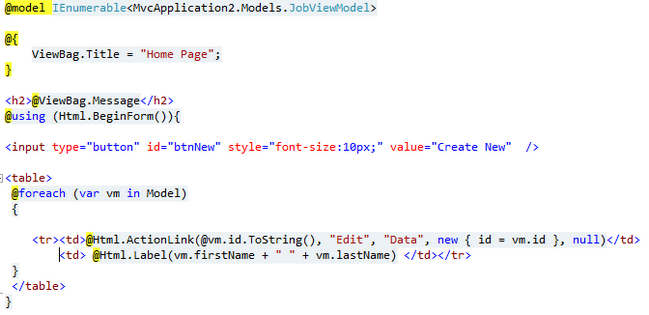

Create View to retrieve data into View Model Collection

I have added a snippet of jQuery code to get the btnNew event and redirect it to my controller called Data and go to the Action Create.

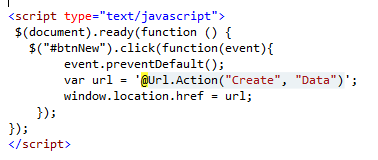

jQuery Code to fire Create Code in Data Controller

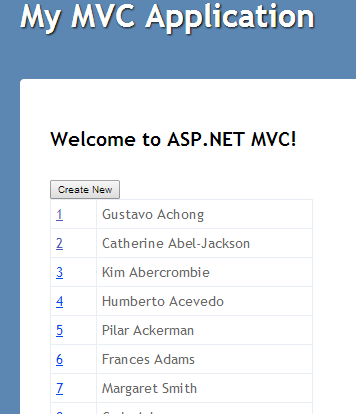

A quick test to see that everything runs before I create the Controller and Views for Edit and Create.

Adding Controllers and Views to Insert and Update Data

The Update SQL Stored Procedure to retrieve data by Id for editing is accessed in the Data Layer.

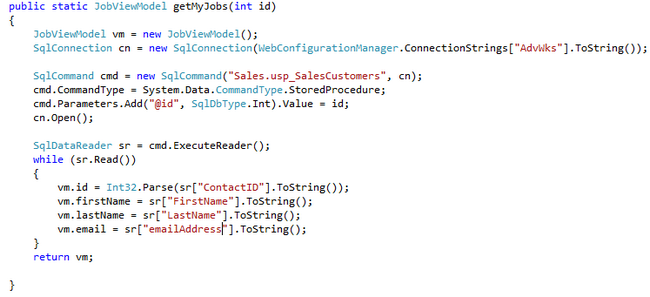

Code to Retrieve Single Database Record

A Business Layer that returns data for editing or a placeholder in the FirstName textbox is created and a static method is created to return data to the model.

data Retrieval Code

I create a Controller called Data with 2 ActionResult sections: one for Edit, the other for Create.

ActionResult for Edit & Create

I then create a View for each. The Create View and Edit View are identical forms except that the Edit View will have data to update and the Create View will be inserting data.

Create View

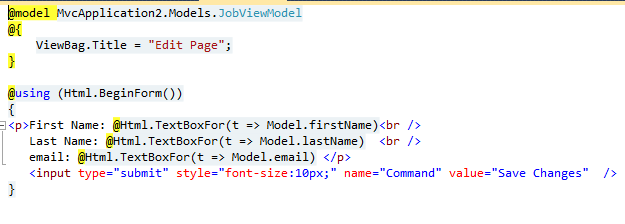

Edit View

In the Index.cshtml, I call separate Html.RenderActions depending on which Controller has been called - one for Edit, one for Create.

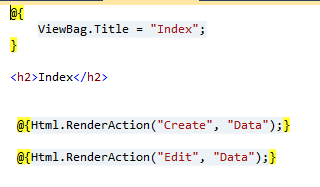

Data Index View RenderAction for Create or Edit

Addoing Stored Procedures & Methods to Insert and Update the Records

In the Data Layer, I add a static method to update the Contact table by passing the ViewModel as well as a 2nd static method to insert a record into the Contact table.

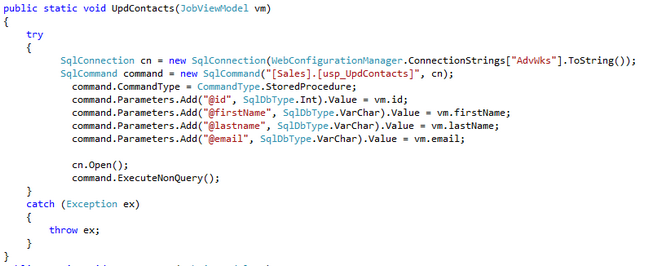

Data Layer Edit

Note how the Insert stored procedure call does not require a parameter for the ID since it is already the Primary Key defined with the Identity(1,1) to automatically increment it upon Insert.

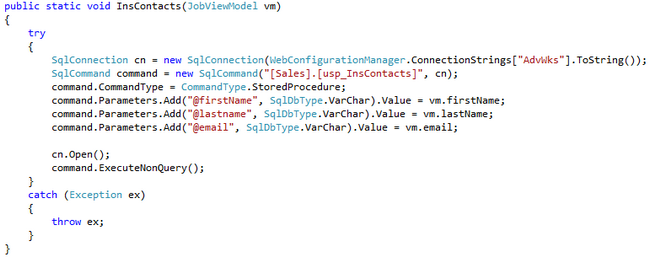

Data Layer Insert

I add a couple of static methods to the Business Layer for the Update and Insert of the data using the ViewModel

Business Layer Code

I add an ActionResult for the Post method of the form for both Edit and Create and call my static methods in the Business Layer to either Update or Insert a record.

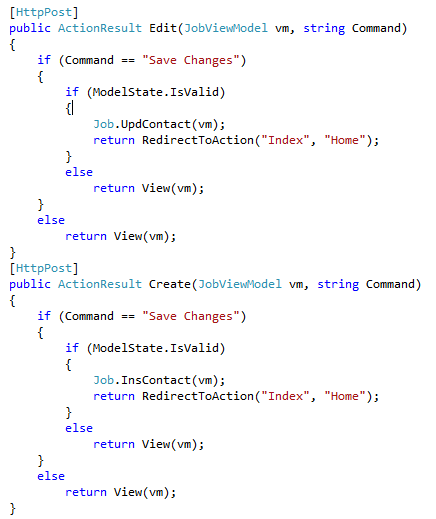

ActionResult Edit & Insert Code

Testing the Edit Controller and View

I run the application and click on a link on the View page provided by the ViewModel in the Home Controller and successfully get to my record and update his name and click on Save Changes. This will cause my Data Controller to execute the code under [HttpPost] for the ActionResult Edit to update the data in the table.

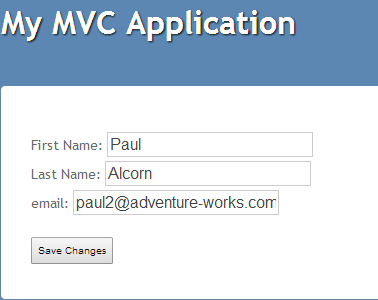

Edit Form

I verify in the list back in the Home Controller that he has been updated with his new first name.

Verify Successful Edit

Testing the Insert Controller and View

I click on the Create New button from the Index page in the Home Controller and successfully get to the Create View form..

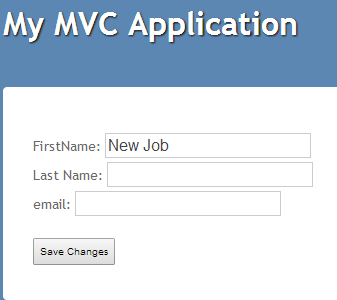

Default Insert Form

I then change the First Name, Last Name and email fields and click on Save Changes which will cause the code in the Data Controller Action Result under [HttpPost] for Create to execute and insert the new record into the Person.Contact table..

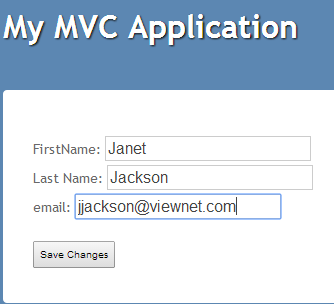

View Form for Insert

Back on the Home Index page, I see I have successfully added a new record to Person.Contact.

Verify Successful Insert
